Overview

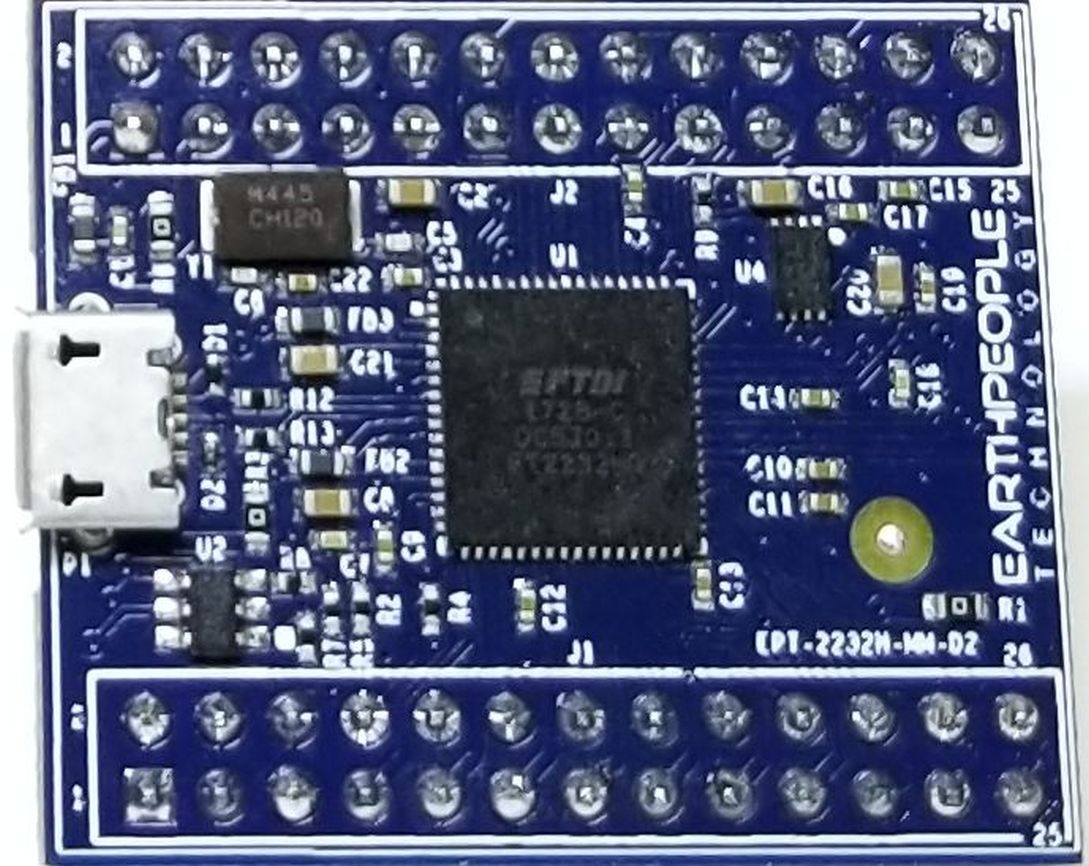

This breakout board is based on the FTDI FT2232H USB 2.0 IO chip. The FT2232H is a USB to serial converter, but with a lot more features. There are two independent serial ports in the chip. Each port is individually addressable and does not interfere with to other port. It uses the best in class FTDI CDM Driver. Just connect it to a USB port on a PC and the driver creates two ports.
The FT2232H Breakout Board contains the MPSEE engine. This engine can output SPI, I2C, JTAG or act like an eight bit parallel port. Using the JTAG interface, the FTDI Breakout Board can program the ATMega and Arduinos. It is supported by OpenOCD, urJTAG and others.
Hardware Features
- USB 2.0 Hi-Speed (480Mb/s)
- 2 Independent USB to serial ports
- 2 MPSSE modules with I2C, SPI, and JTAG
- General purpose IO pins
- 3.3volts
- Supported JTAG debugger in OpenOCD, urJTAG, and others
- Multi-platform support, GPL drivers
The breakout board includes an EEPROM for custom USB descriptors and VID/PIDs.
Downloads
| 85-000001 | Dual Channel FTDI Breakout Board User Manual | DUAL_CH_FTDI_BREAKOUT_UM.pdf |
| 95-000001 | Dual Channel FTDI Breakout Board DataSheet | DUAL_CH_FTDI_BREAKOUT_DS.pdf |
| 55-000001 | Dual Channel FTDI Breakout Board Schematics | DUAL_CH_FTDI_BREAKOUT_SCHEMATIC.PDF |
| 35-000001 | EPT Drivers | EPT_2.12.00.exe |
