Overview

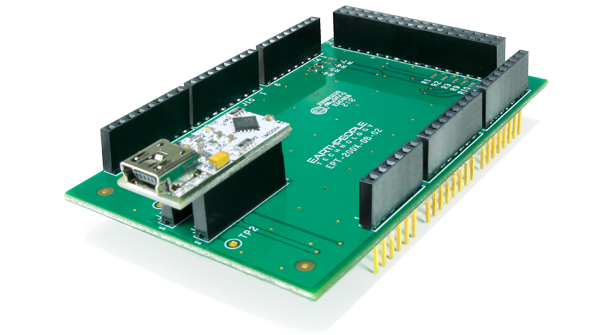

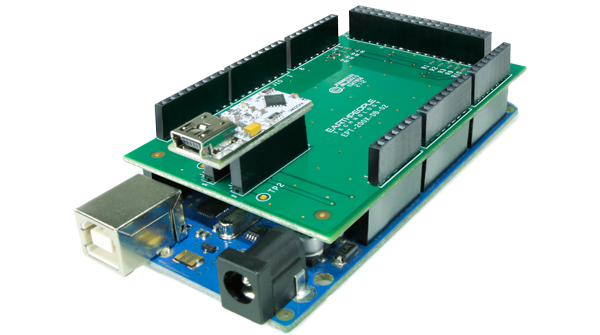

The EPT-201X-DB-M4 is designed to support the Uno board of the Arduino Open source Prototyping Platform. The Mega can communicate as an I2C Master to an I2C Slave device. The EPT-201X-DB-M4 is a USB to Slave I2C device. This will allows users to communicate from the Arduino Mega board to the PC over I2C. Use the Active Host API to quickly and easily create a simulated I2C sensor on the PC. Use the simulated I2C Sensor to debug your Arduino I2C Master communication code.
The EPT-201X-DB-M4 I2C Slave Communications Board can communicate directly with Hyper Serial Port to provide a serial terminal for debugging the Arduino I2C Master communications. You can easily create your own I2C communications and debug it using the EPT-201X-DB-M4.
The EPT-201X-DB-M Requires the use of a USB Mini Type B cable. EPT recommends the EPT-USB-AM-MB cable.
Hardware Features
- Uses FTDI 201X IC Chip
- USB to Slave I2C Interface
- Up to 3.4 MHz, high speed mode, I2C supported
- +5V I/O compatible
- Supported by Active Host API
Downloads
| 85-000006 | MEGA I2C Slave to USB User Manual | MEGA_I2C_USB_UM.pdf |
| 95-000006 | MEGA I2C Slave to USB Data Sheet | MEGA_I2C_USB_DS.pdf |
| 45-000006 | MEGA I2C Slave Project CD | MEGA_I2C_PROJECT_CD.ZIP |
| 35-000001 | EPT Drivers | EPT_2.08.24.ZIP |
